2010-2023-- Evolving Machine

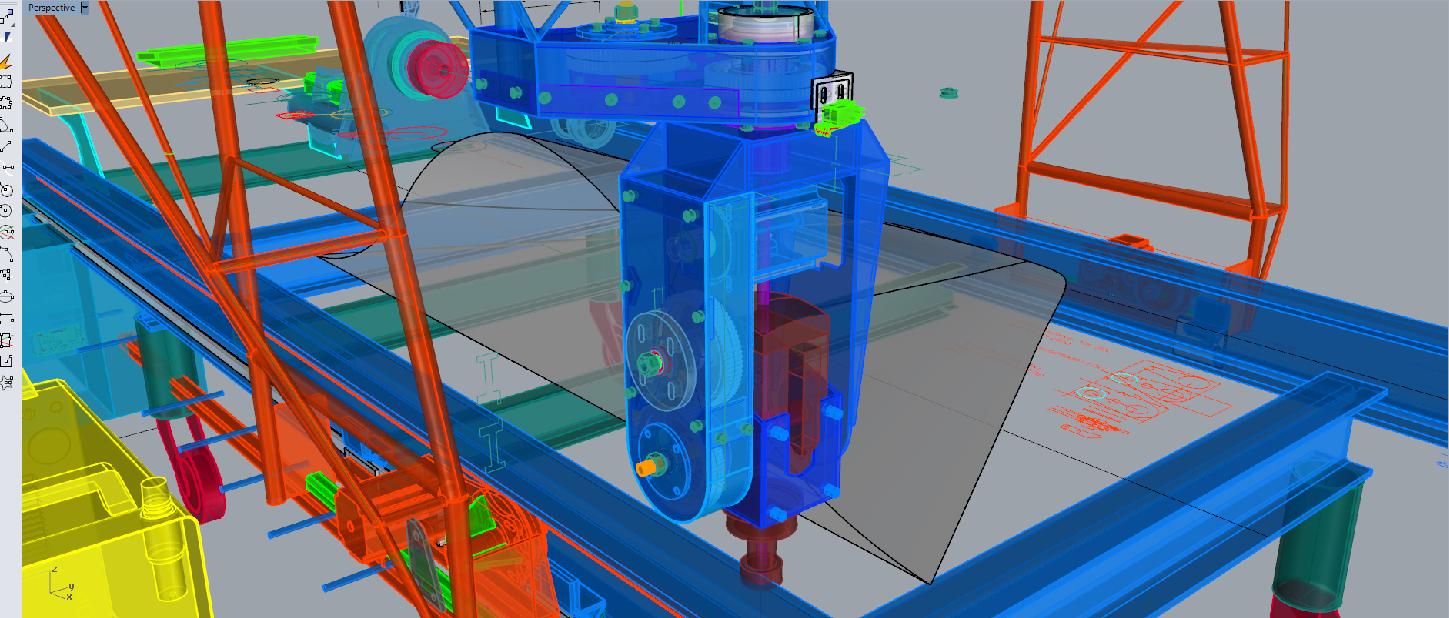

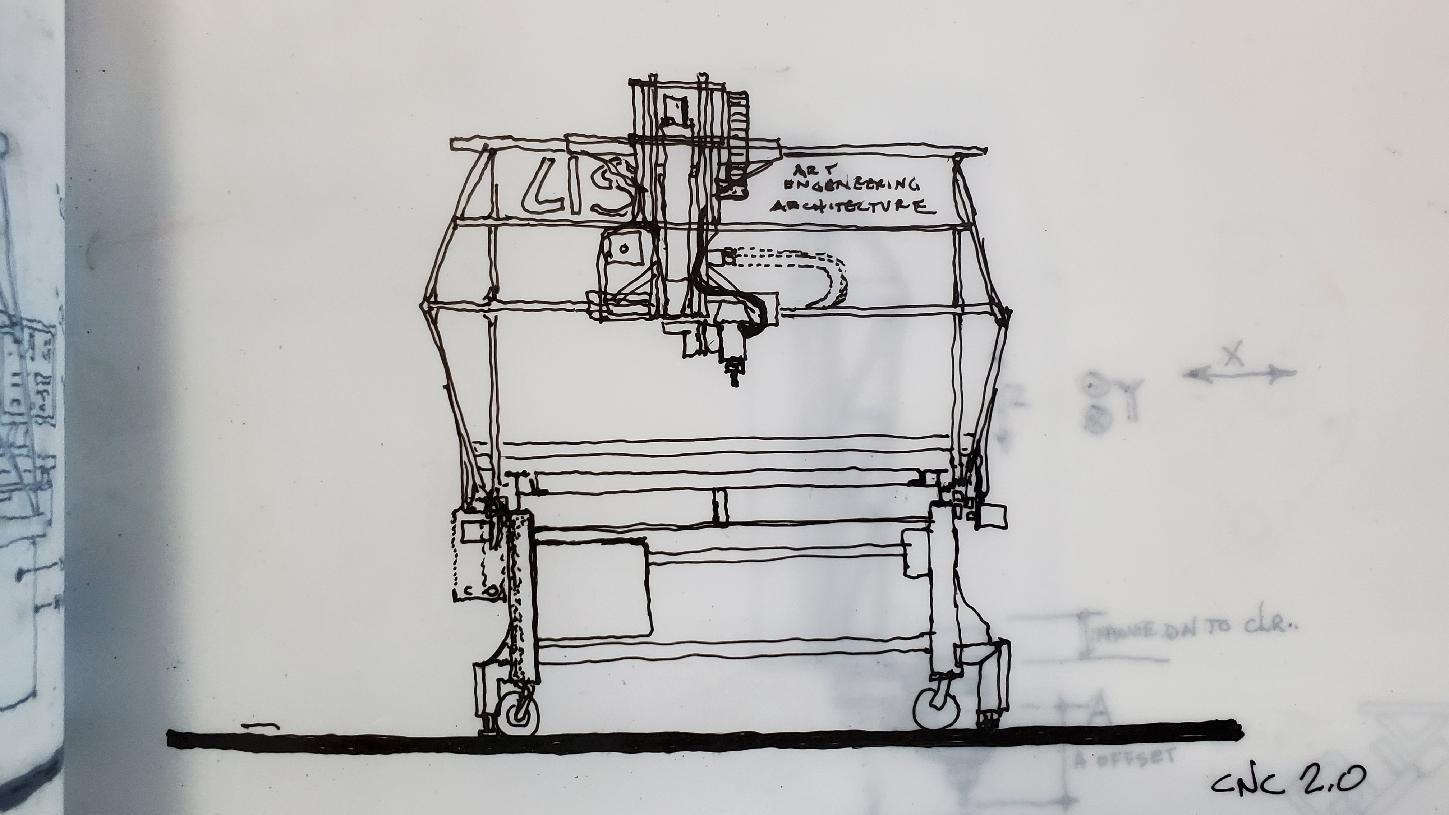

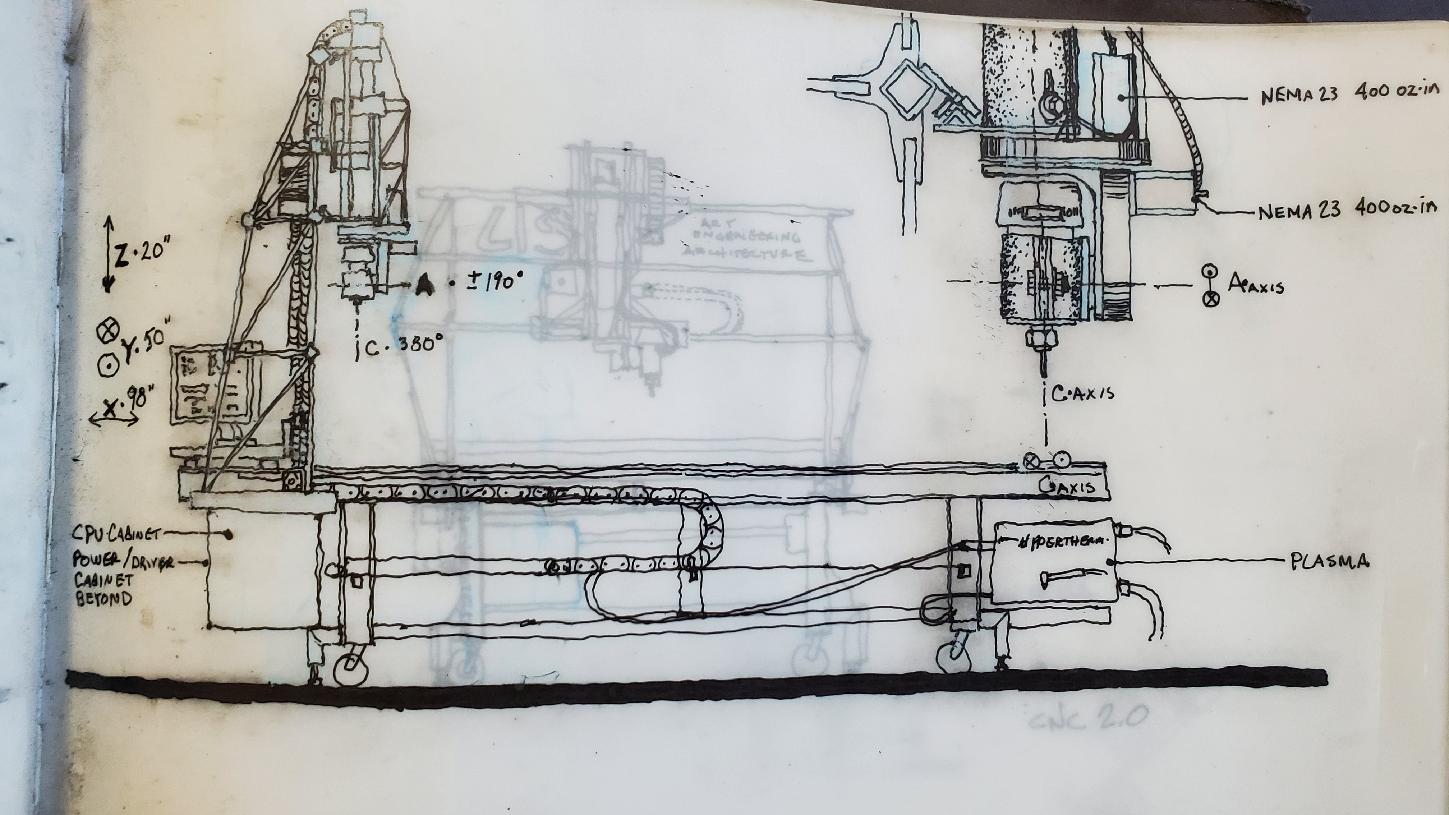

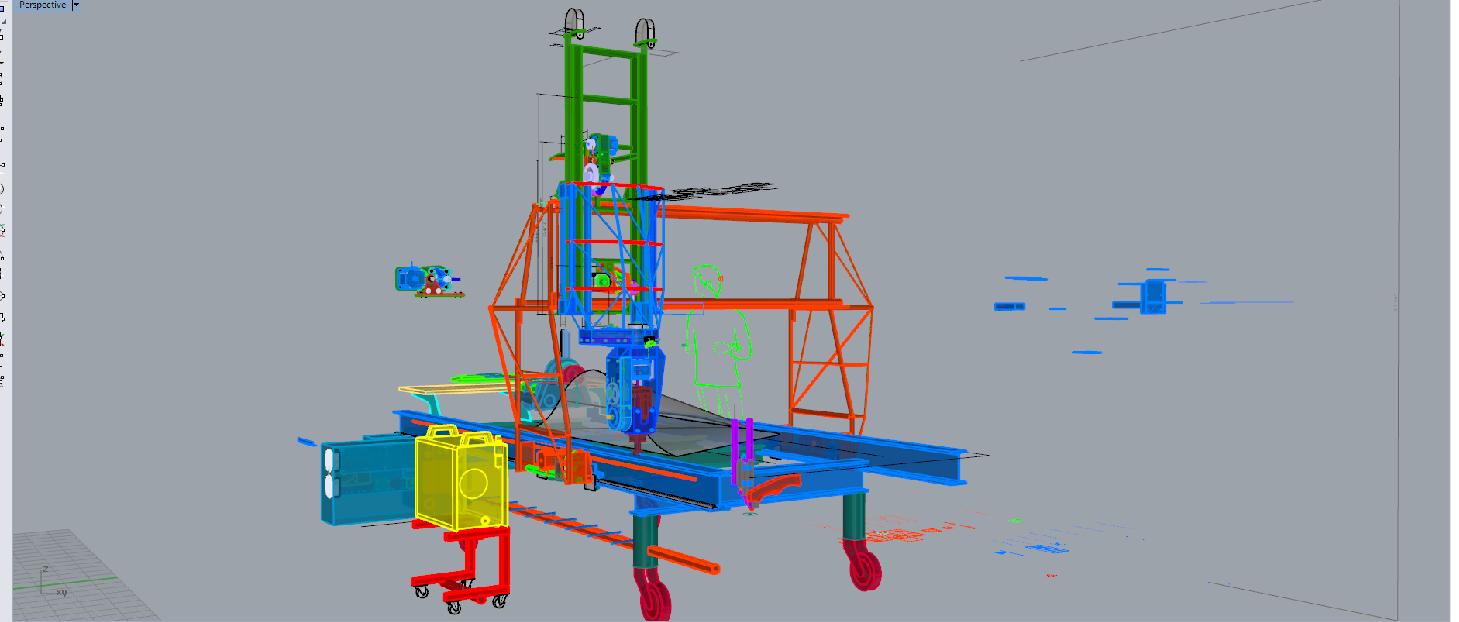

5 axis cnc machine with 4'x10' bed and approx. 22" of Z travel.

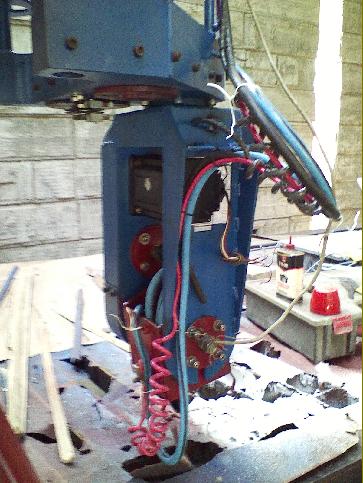

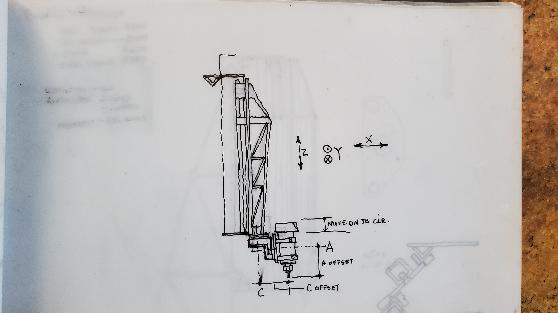

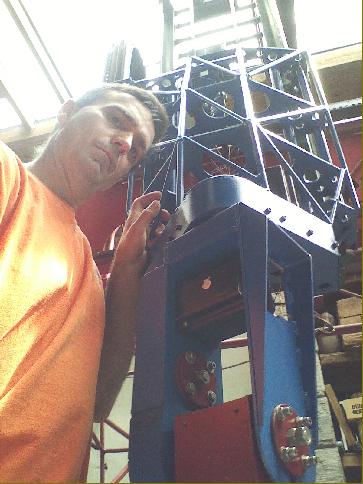

A axis: 300deg. Travel.

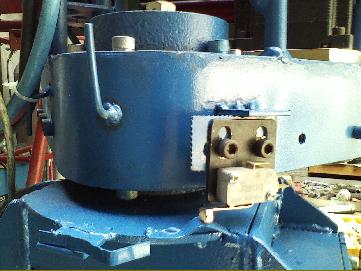

C axis: +/- 180deg
Rotary Axis: 8" chuck infinite indexing axis.
Lathe adaptation: placement of wood lathe on table, tool holder mounted on A axis fork.

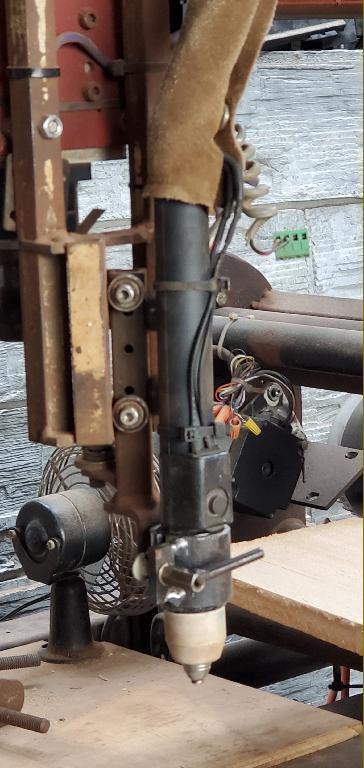

Plasma: ESAB PCM 1125 80 amp machine with adapted P80, 25'
machine torch.
Router: 5.3hp VFD controlled a/c router with ER20 collet.

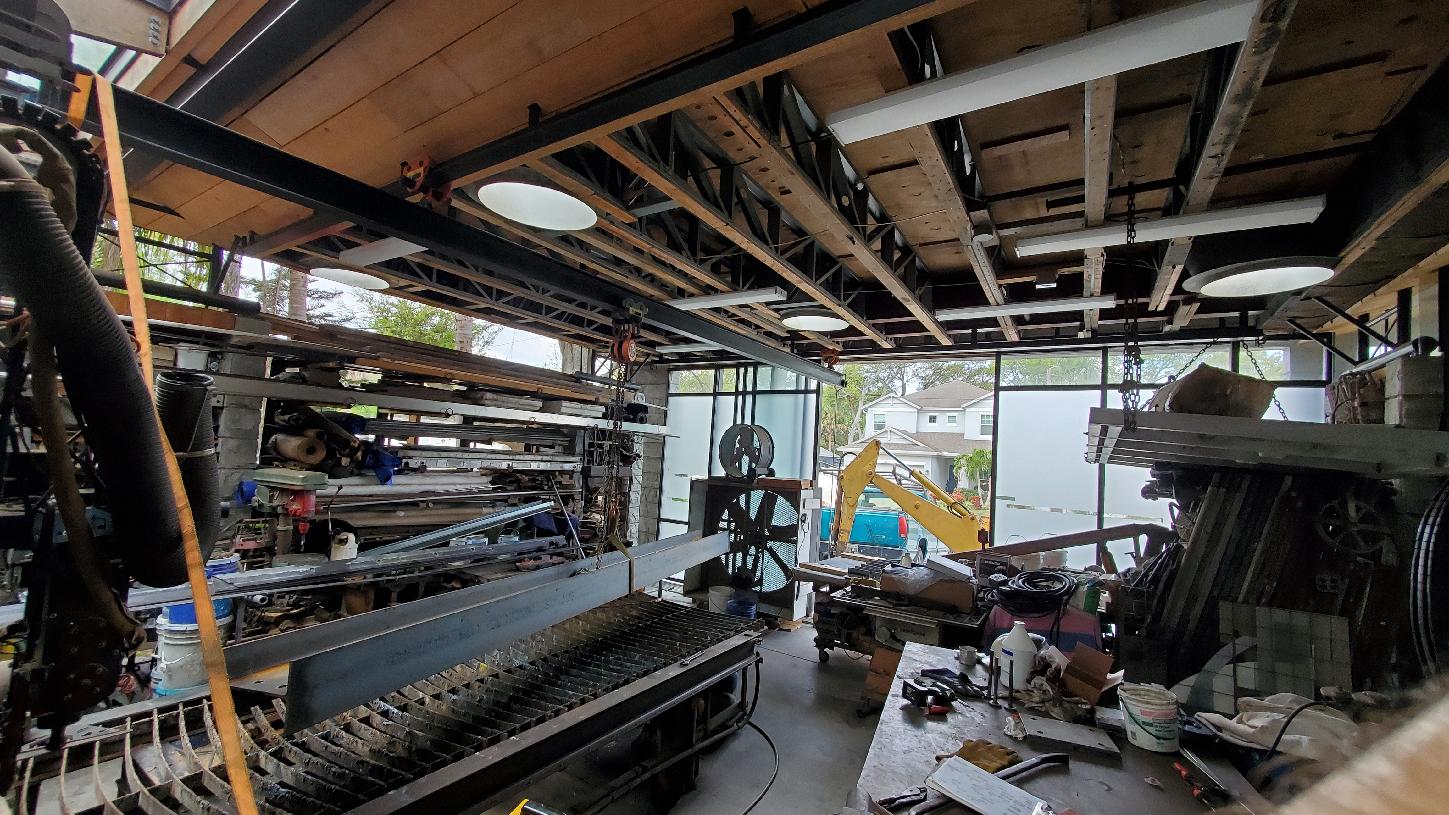

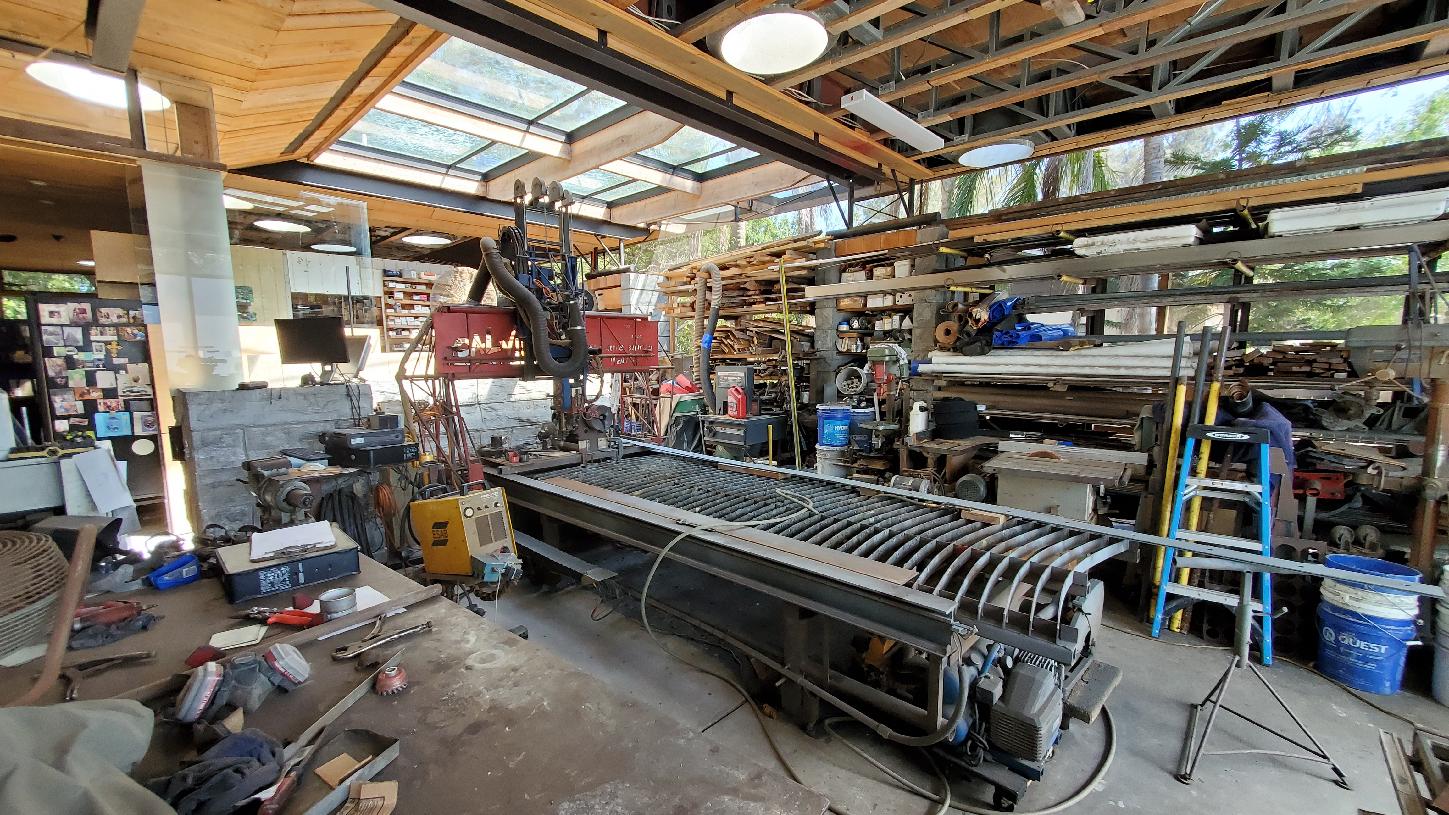

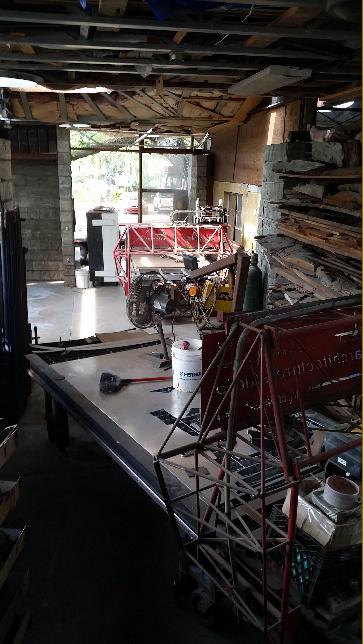

The large Z axis allows for a variety of adaptive uses from ustilizing the 5 axis fro router carving of wood or foam masses as well as for plasma cutting large steel sections like I-beams and large tubes. The overhead 2 axis 1Ton traveling hoist assists in moving large massive pieces from the operable sliding doors of the workshop opening to the driveway to the table for processing. I-Beams can be coped or flange holes burned into them. The 5 axis allows for a cope to be done at an angle to avoid slicing into the web.
|
|
