Project Log

In Progress - 6330 House  Project Log

6330 Design Pages

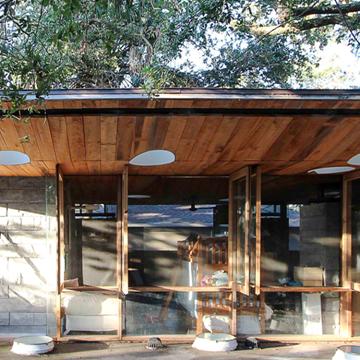

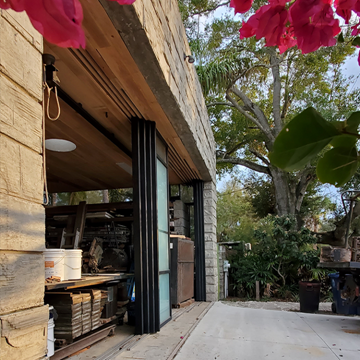

Transparency is maximized by making these triple-fold doors with the hinged rail as a 1/4"x3" steel flat bar while the other rail is a 4x2 steel tube.

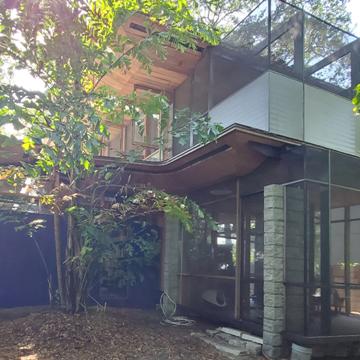

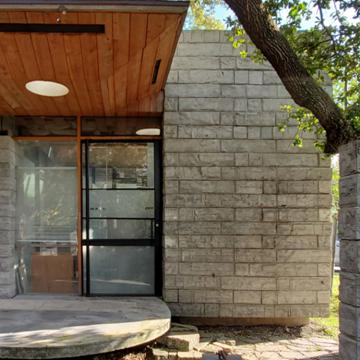

The floating roof plane extends past the rough shell  at the south entry gallery.  This "gallery" derives from the early Spanish houses in northeast Florida where a south entry gallery was used to give privacy to the entry and to let filtered light into the house area.

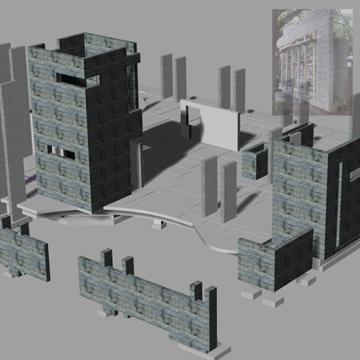

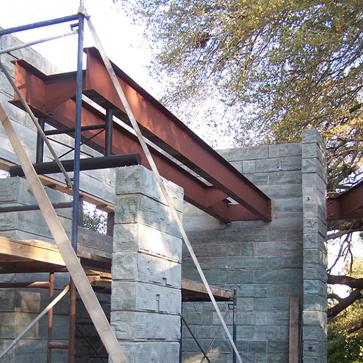

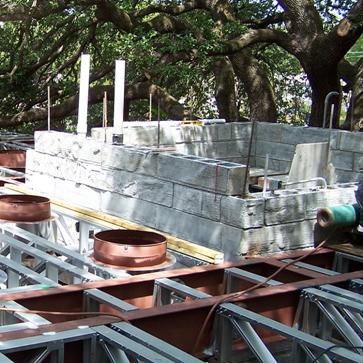

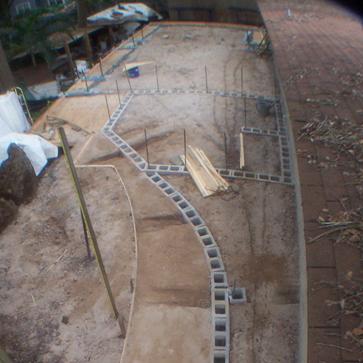

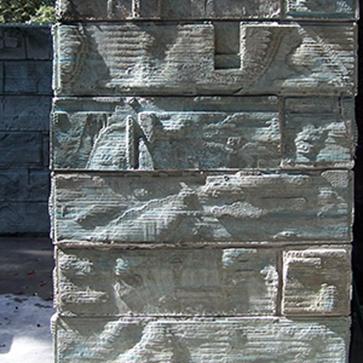

Structural Shell:  the MacBlock

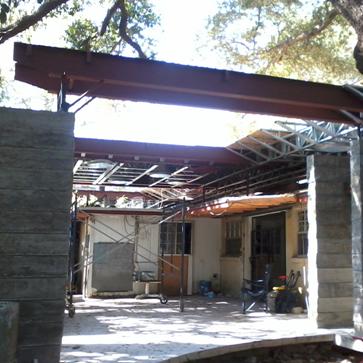

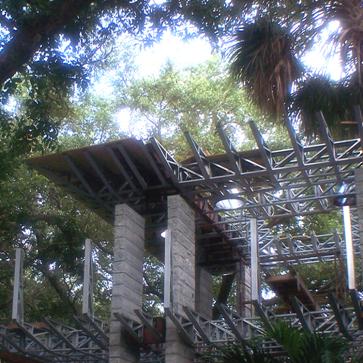

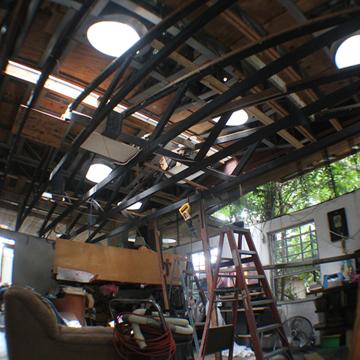

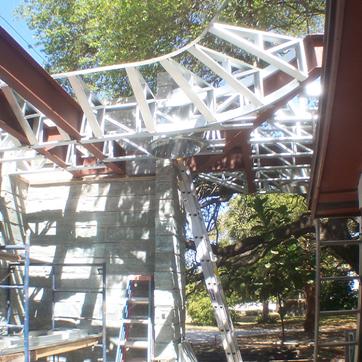

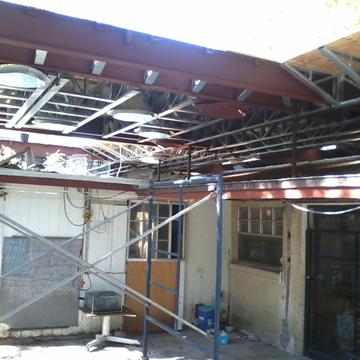

The Floating Roof Planes

Lv2 Overhead Plane

Lv1 Overhead Plane

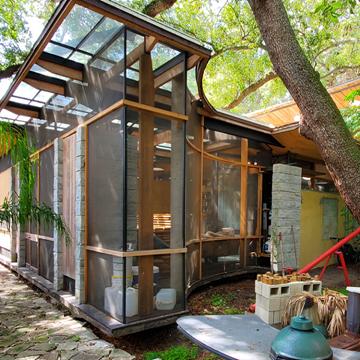

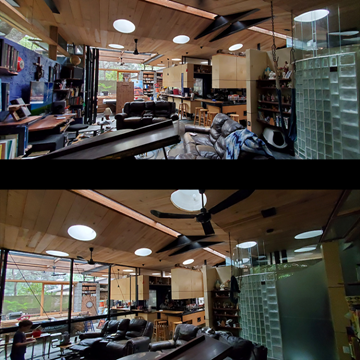

The contrast of systems gives one a sense of permanence while opening the space to the outside.  The Glass-Line provides the thermal envelope when wanted or needed while the Screen-Line provides protection against the Florida insects while allowing the space to be opened and expanded.

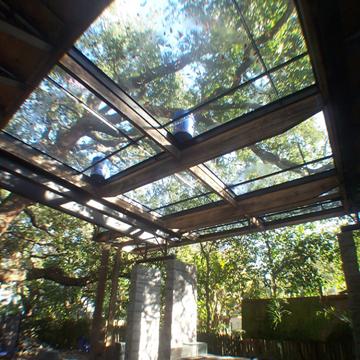

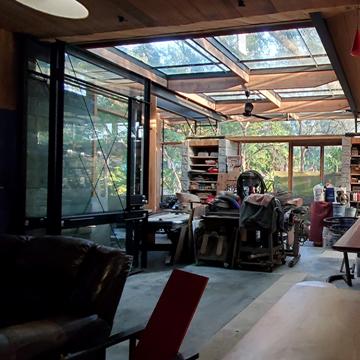

Sloped Glazing System

Skylights

Thermal envelope:

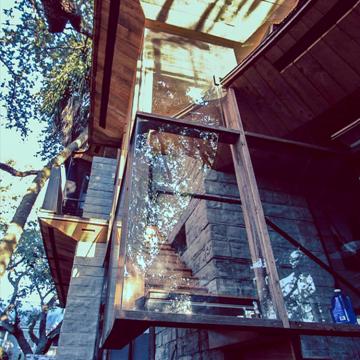

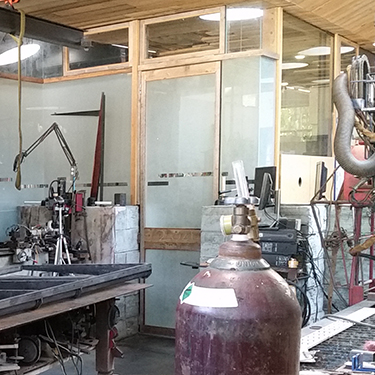

Cypress Glazed Curtainwall

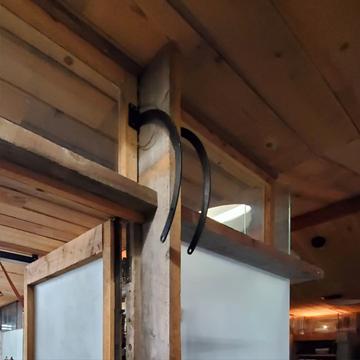

Wood systems

Insect Envelope:
Screen enclosure system

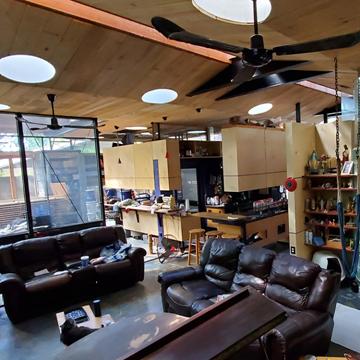

Interior Systems

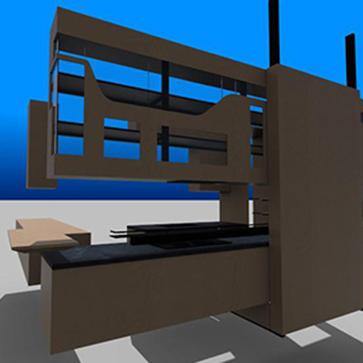

Kitchen

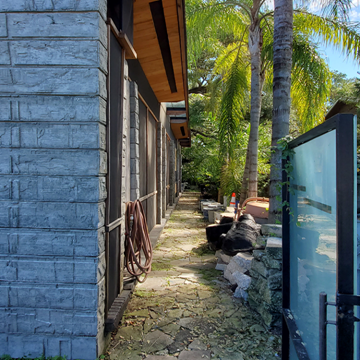

Site / Accessories

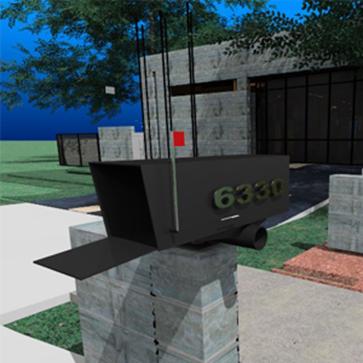

MailBox
