Next Phase:  Steel Waffle Grid Roof Plane

Previous Phase:  Foundation & Slab

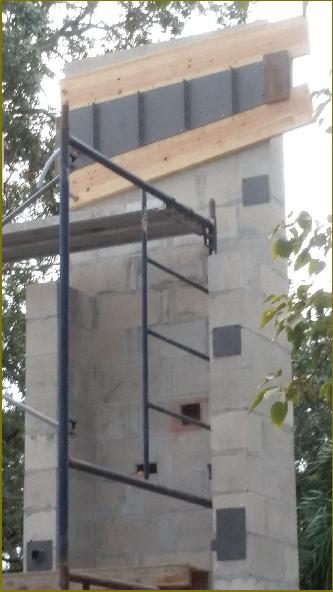

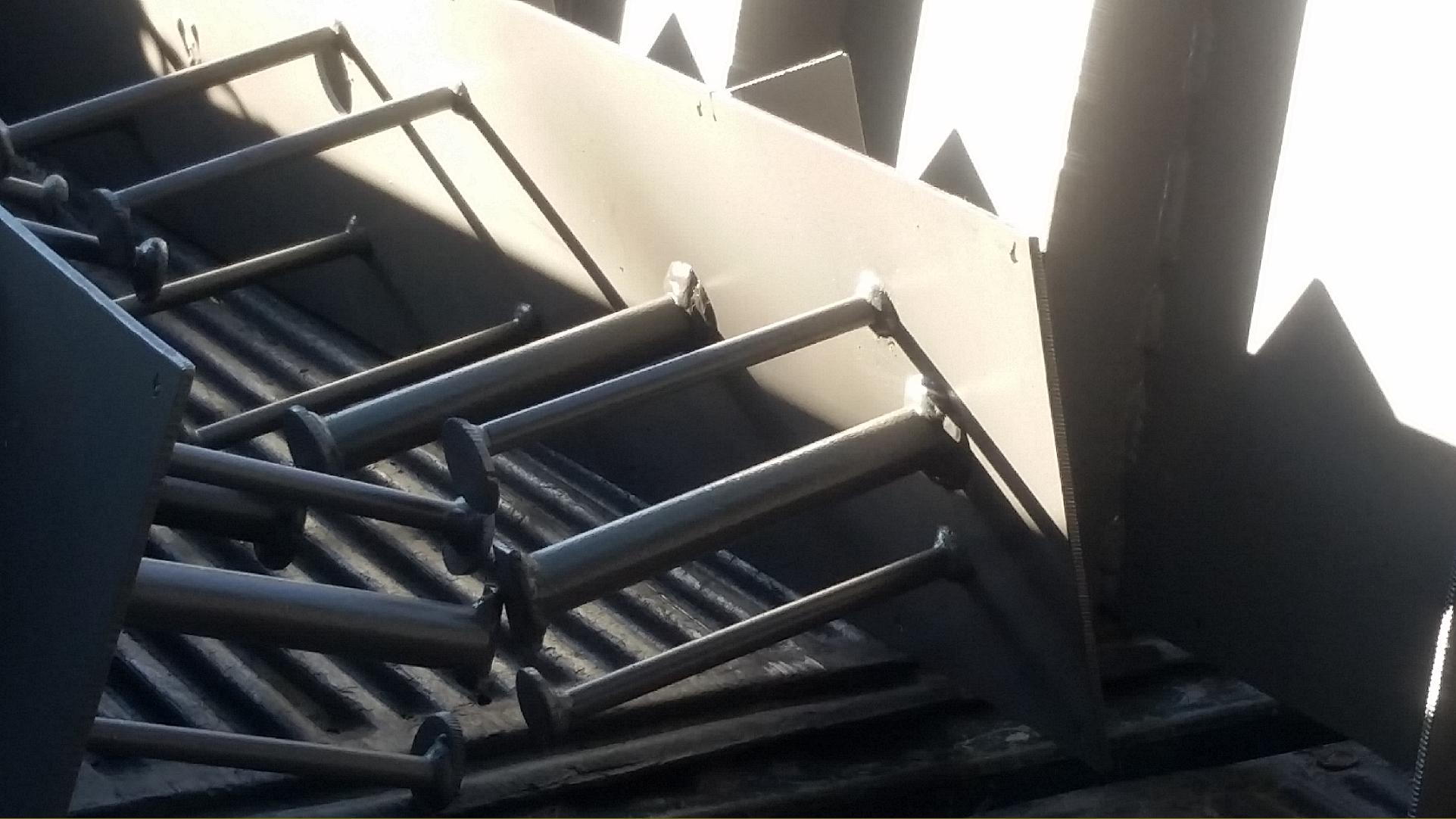

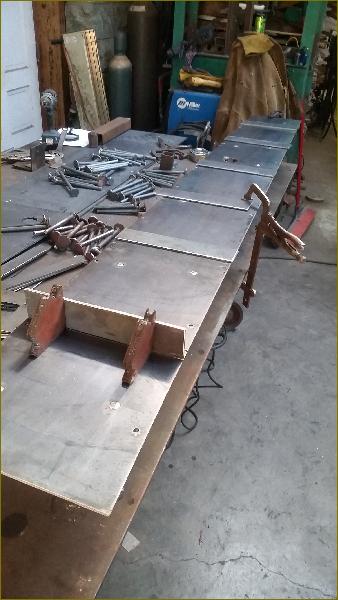

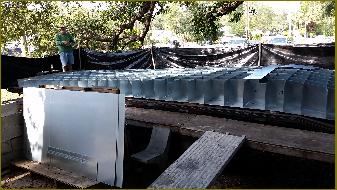

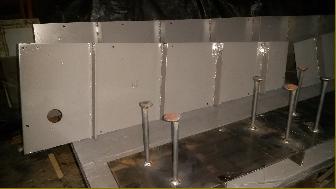

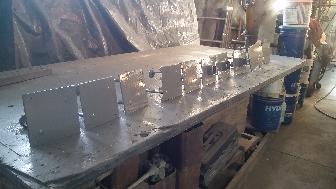

Embeds for the Steel Waffle Grid Roof Plane

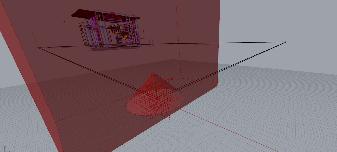

Checking the concrete stress from the  pull out shear cone  of the embed studs for the roof plane.  Using Grasshopper to define  the cone and its surface area.

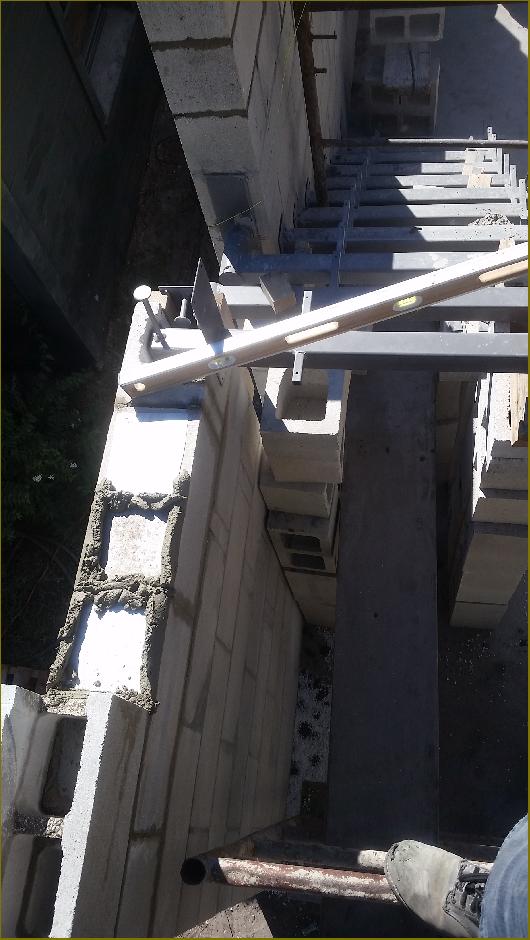

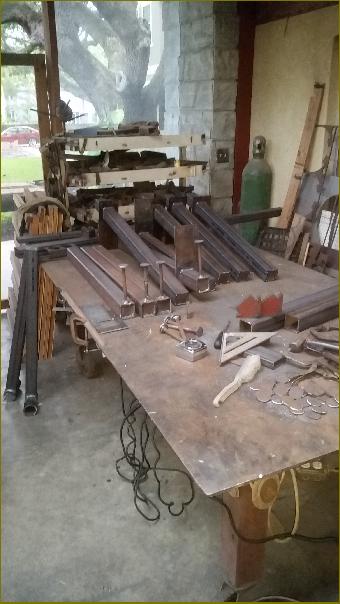

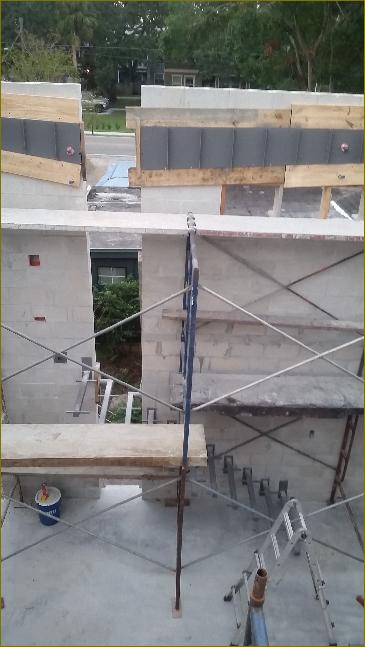

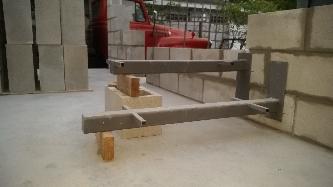

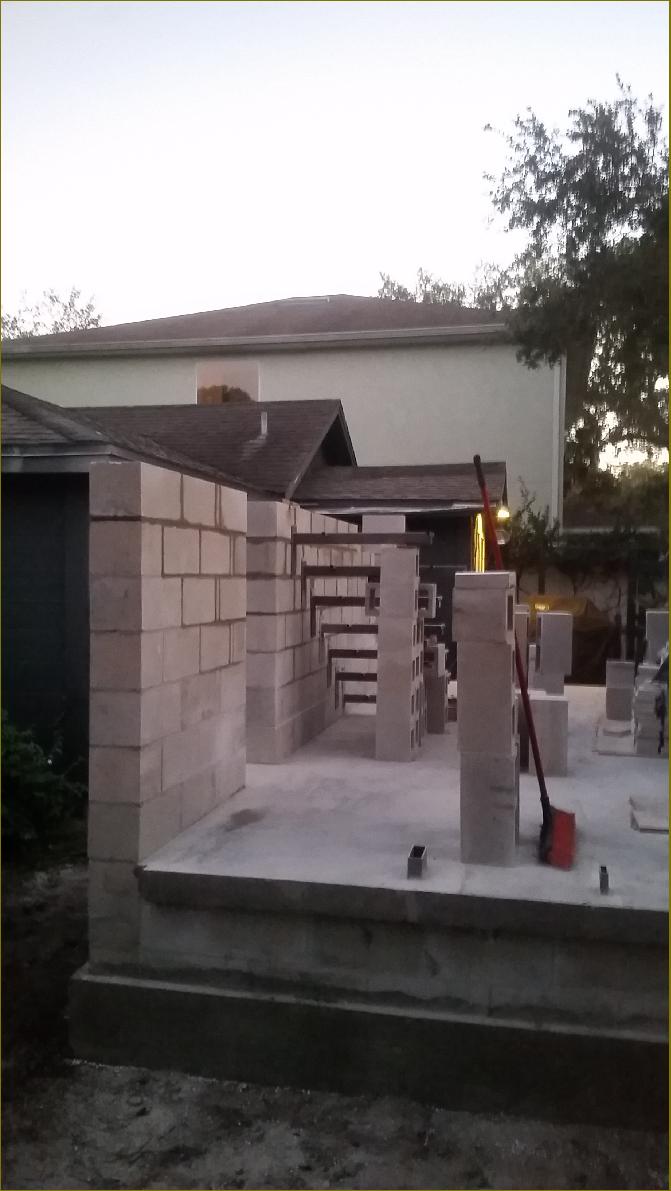

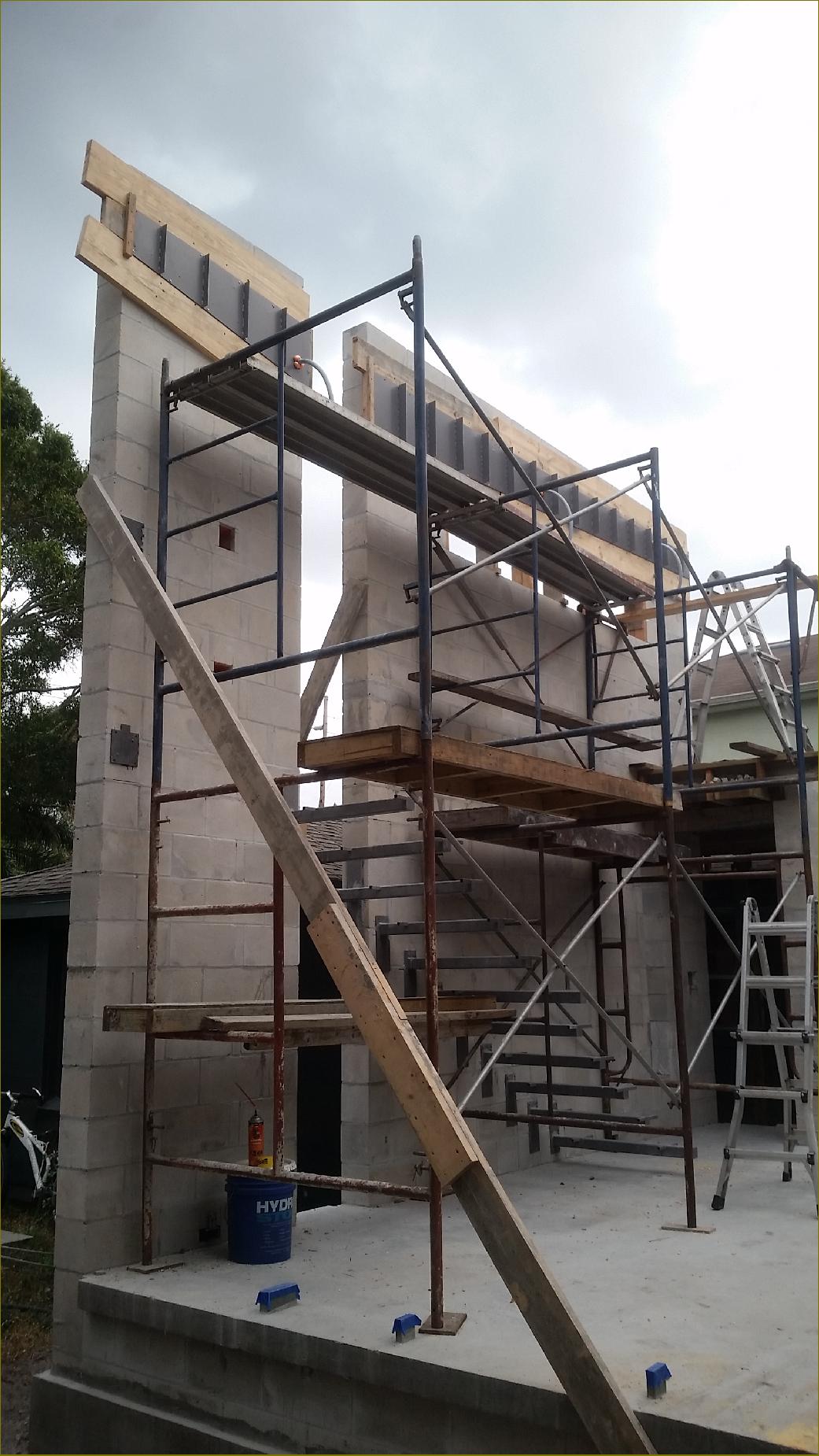

Stair embed tubes, build into the block wall as it is laid up.

You can see the '56 International in the background there . . . Still running . . .

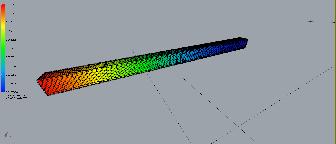

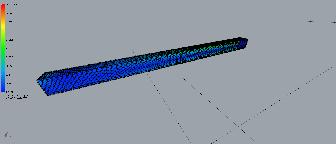

Finite Element Analysis of the cantilevered stair tubes.  Using Scan and Solve for Rhino.
