Digital Files:  within 24 hours of receiving your payment, we will email you with instructions for downloading the file set.  Please indicate 3d model format & 3d CAD software used so we can get you the right file format for your 3d model.  Most file formats can be provided.  Thanks.

Cheers!                                    --Calvino

3d Model & Digital Files Agreement:

Files and/or model are sold As-Is with no warranty expressed or implied.  By completing this transaction in Paypal, you are agreeing to the Terms and Conditions linked here

CALVINO architecture studio & CNC works  CNC Machine Design/Build Files

Contact  Mike Calvino  mike@calvinodesign.com

Although the Kickstarter project was not sucessful, I have managed to assemble the digital models and some of the excel file information including some links to parts suppliers and offer them for sale in this series of web pages. I hope you find them useful, affordable, and inspire you to build your own CNC machine for personal, business, or educational use.


Please note that these files are not a set of instructions with 2d drawings, labels & parts lists, but are actual, full size, 3d models with nearly all of the parts constructed including fasteners, electronics boards, drivers, bearings, etc.

Build your A/C head for CNC router from these files - 3d  Digital Model, .dxf files for 2d cutouts, excel file with parts lists & manufacturer/supplier hyperlinks, also includes sample g-code files for plasma cutting parts. Please indicate file format request for 3d model.


All file formats have flat parts extracted and drawn as 2d polylines appropriate for cnc contour cutting via CNC plasma, laser, or waterJet.


AutoCad .dwg file has blocks & table with extracted block attributes containing cost & supplier information.


Excel Materials List file included with manufacturer hyperlinks & pricing- as-of date listed in file.

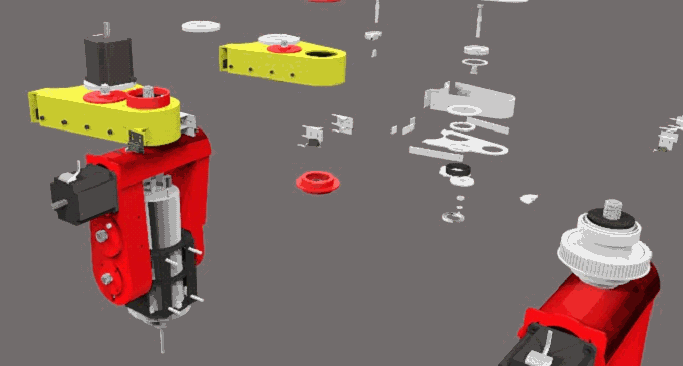

Version 1.0 CNC A/C head:

3d Model & Digital Files

File no. 90037-02.04-02

2012-02-24

These are the files that the a/c head seen on the Kickstarter project were built from.

Price:  $100 USD

Files may include but are not limited to:


90037-02AcHead.3dm

02AcHeadPartsAllExploded.pdf

02-300AAxis Assembly.pdf

02-200CaxisFork Assembly.pdf

02-100CaxisHousing.pdf

0.4inAlumPlateCaxisMotorSpacer.dxf

0500CutFile0.375Plate02ACversion02BearingRetainers.dxf

0500CutFile0P04inCheadSplit.dxf

0500CutFile07GaSheet01.dxf

90037.02A-Chead.xls
