Although the Kickstarter project was not sucessful, I have managed to assemble the digital models and some of the excel file information including some links to parts suppliers and offer them for sale in this series of web pages. I hope you find them useful, affordable, and inspire you to build your own CNC machine for personal, business, or educational use.

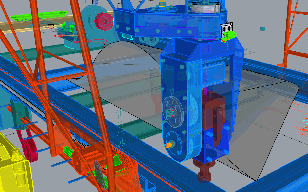

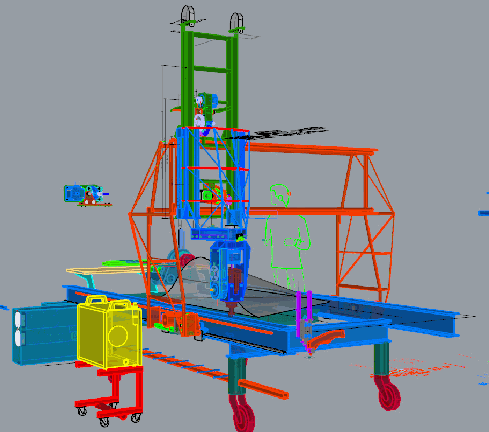

Please note that these files are not a set of instructions with 2d drawings, labels & parts lists, but are actual, full size, 3d models with nearly all of the parts constructed including fasteners, electronics boards, drivers, bearings, etc.

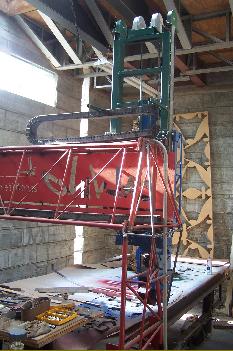

Build your 5 axis CNC router/plasma cutter  from these files - 3d  Digital Model,  excel file with partial parts lists & manufacturer/supplier hyperlinks, also includes sample g-code files for plasma cutting parts. Please indicate file format request for 3d model.


This machine is designed to produce parts with construction level tolerances and to cut softer materials like wood, foam, and possibly aluminum at slow speeds, acceleration, and shallow depths.  Not suitable for heavy machining of aluminum, or steel.


Table Options:

Table Dimensions:  4'x10'

                                4'x8'

Z travel                    24"

C range                 -180 to +180

A travel                 -120 to +120



Bearing system options:

  1. Pacific Bearing, Profile Rail

  2. Steel angle guide with sealed ball bearings.


Includes floating Z head for plasma torch height controlled , manual torch.


All designs can be modified at your convenience to suit your specific needs.


Electronic cabinet can be attached to table with insulated, fiberglass angle, or could be mounted on wheels and be remote from table.

Version 2.0

5 axis CNC  Machine:

3d Model & Digital Files

File no. 90037-01.02

2013-06-27

Price:  $350 USD

SizeOptions
