	Build Log 09 Electronics and control cabinet-- 5 axis CNC for Santiago Perez's FabLab


	Back to Automation/CNCMachines


	Build Log 09 Electronics and control cabinet 2010 Some of Santiago's work with students can be seen here: https://www.srplab.net/ https://www.youtube.com/@plab48 https://www.flickr.com/people/srplab/ https://www.flickr.com/photos/srplab/albums/72157626070158605


	5 Axis Cnc for SrpLab's FabLab Build Log 00--Design Log Build Log 01 getting started and the table base Build Log 02 gantry Build Log 03 Y & Z carriages Build Log 04 Motor brackets & gear systems Build Log 05 manual motion Build Log 06 A/C Head Build Log 07 Spindle and A/C head motion Build Log 08 Motors and wiring Build Log 09 Electronics and control cabinet Build Log 10 Self powered motion and testing Build Log 11 Delivery and setup

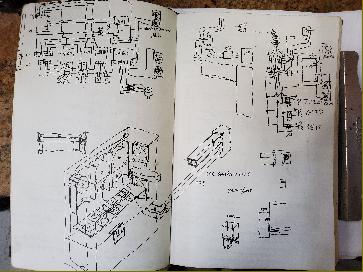

	Below: the sketches shown in the last build log informed the configuration of the cabinet and shelf components.

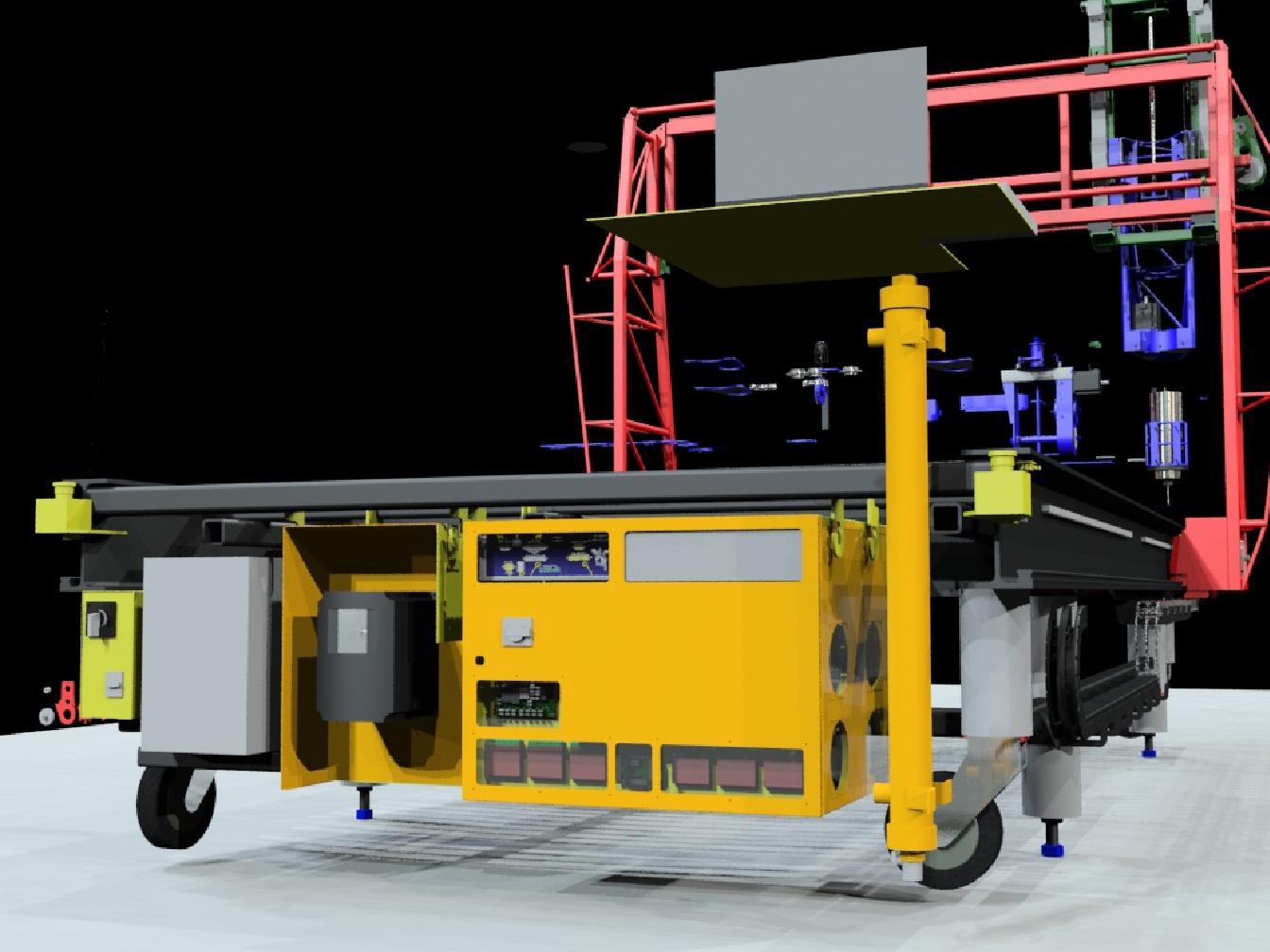

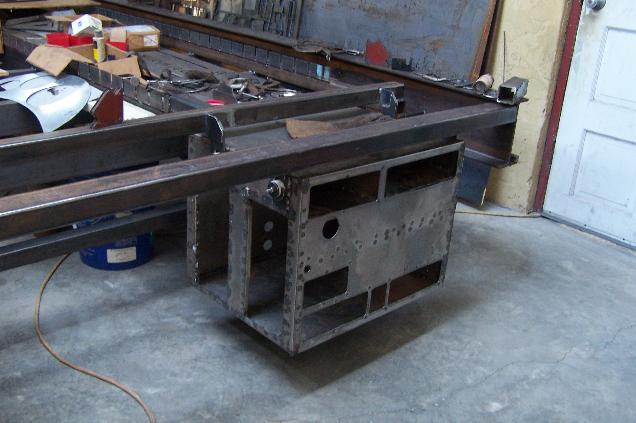

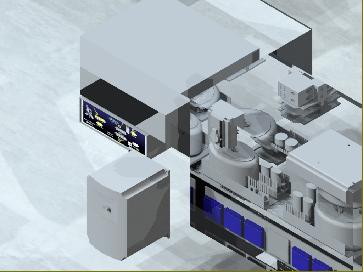

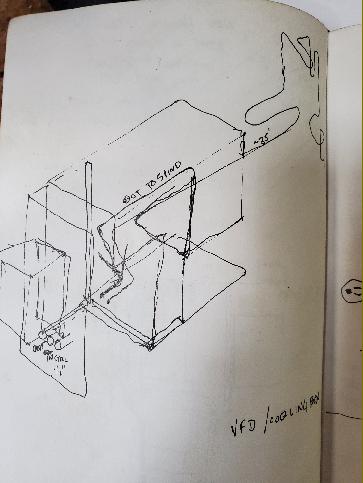

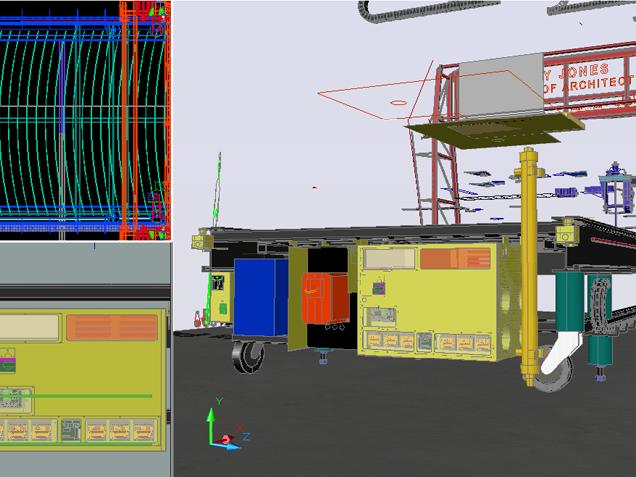

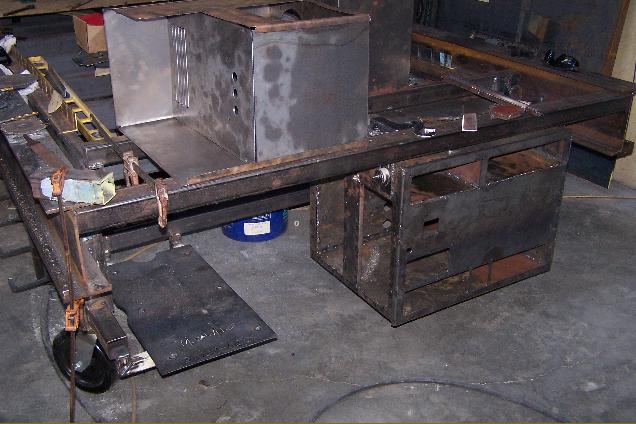

	Above: digital model of control box and components build from the sketches. Right: front view of control cabinet, boxes & component shelves. Far Right: main control cabinet Below Far Right: main control cabinet with input control box on top of table. Below: sketch of input control box shown in last build log.

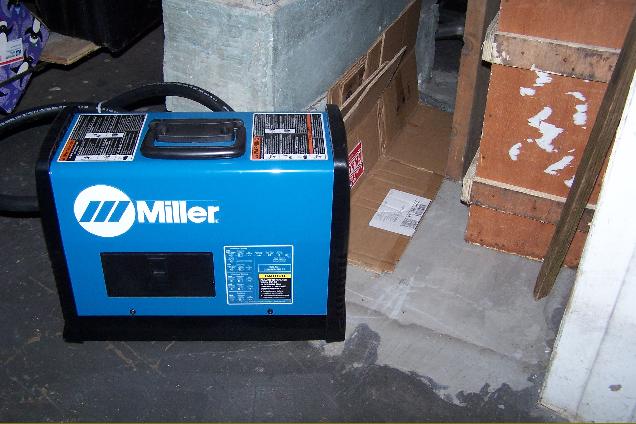

	Right: The other known variable: the Plasma cutter. Far Right: the plasma cutter shelf at lower left.

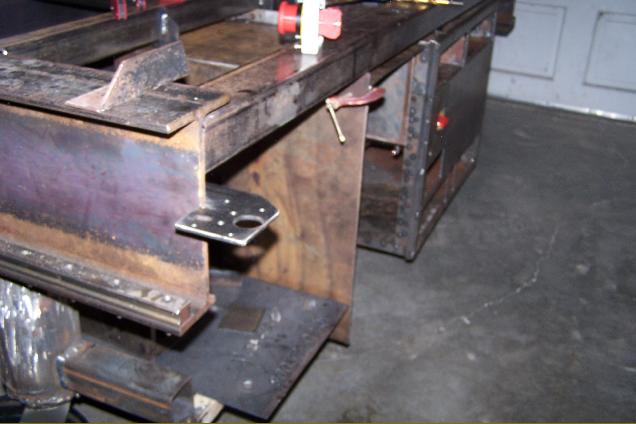

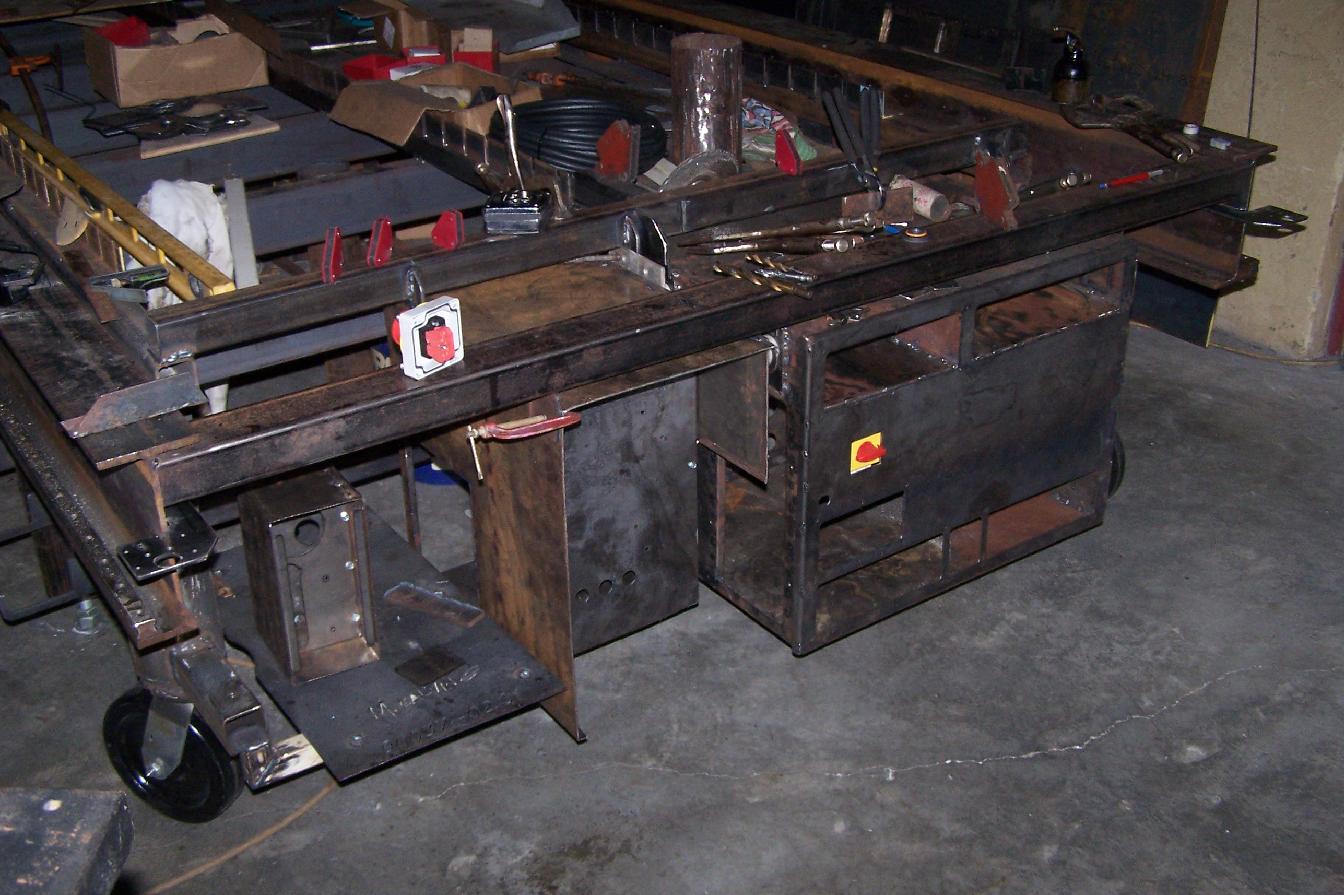

	Far Right: detail of limit switch/E-Stop mounting plate.


	Right: At this point we're ready to take the whole thing apart & paint all of the pieces . . . & then put it back together.

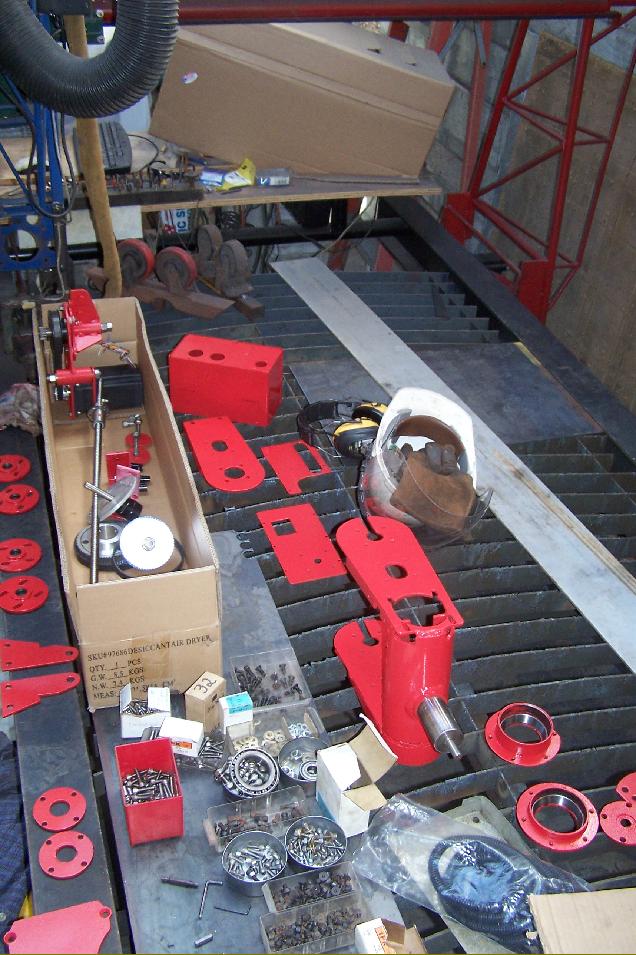

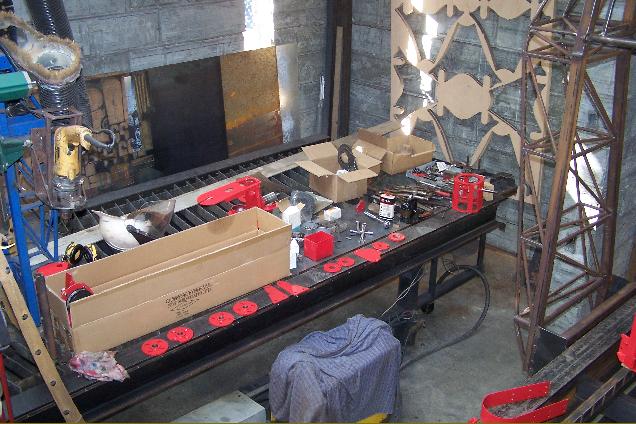

	So here starts the dis-assembly & painting of all the components . . .


	I think we'll skip to the end of that & start putting it back together . . .

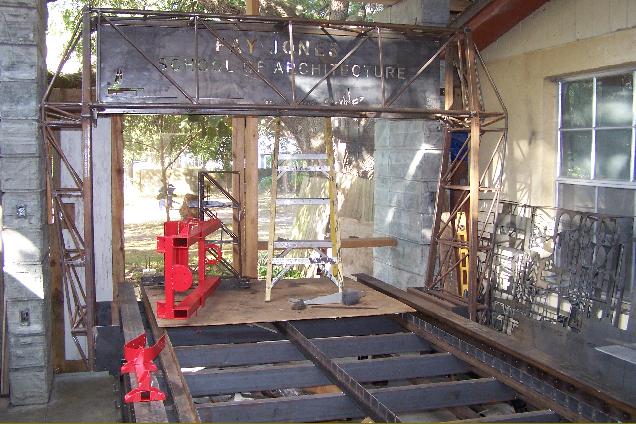

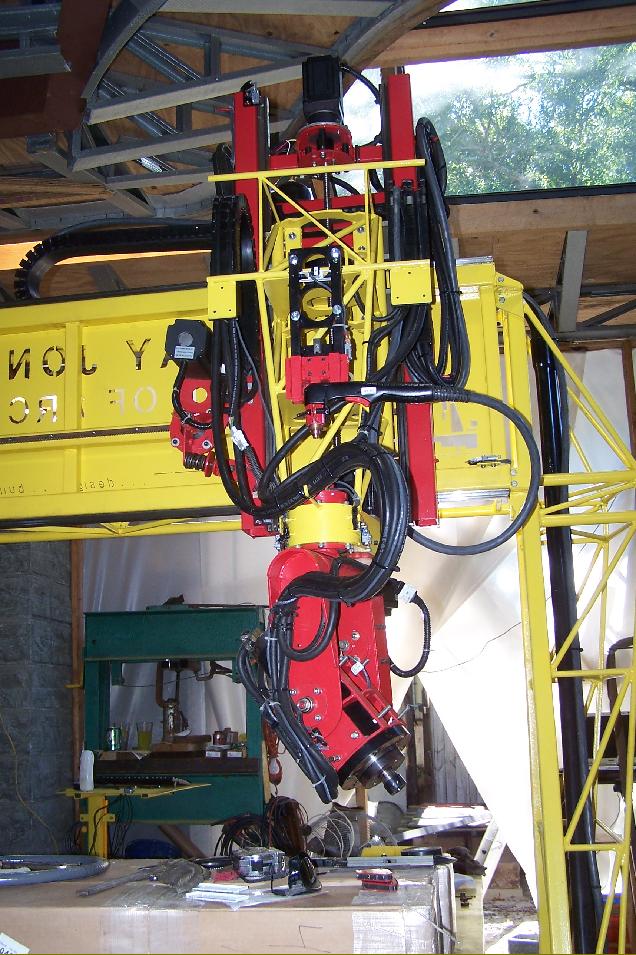

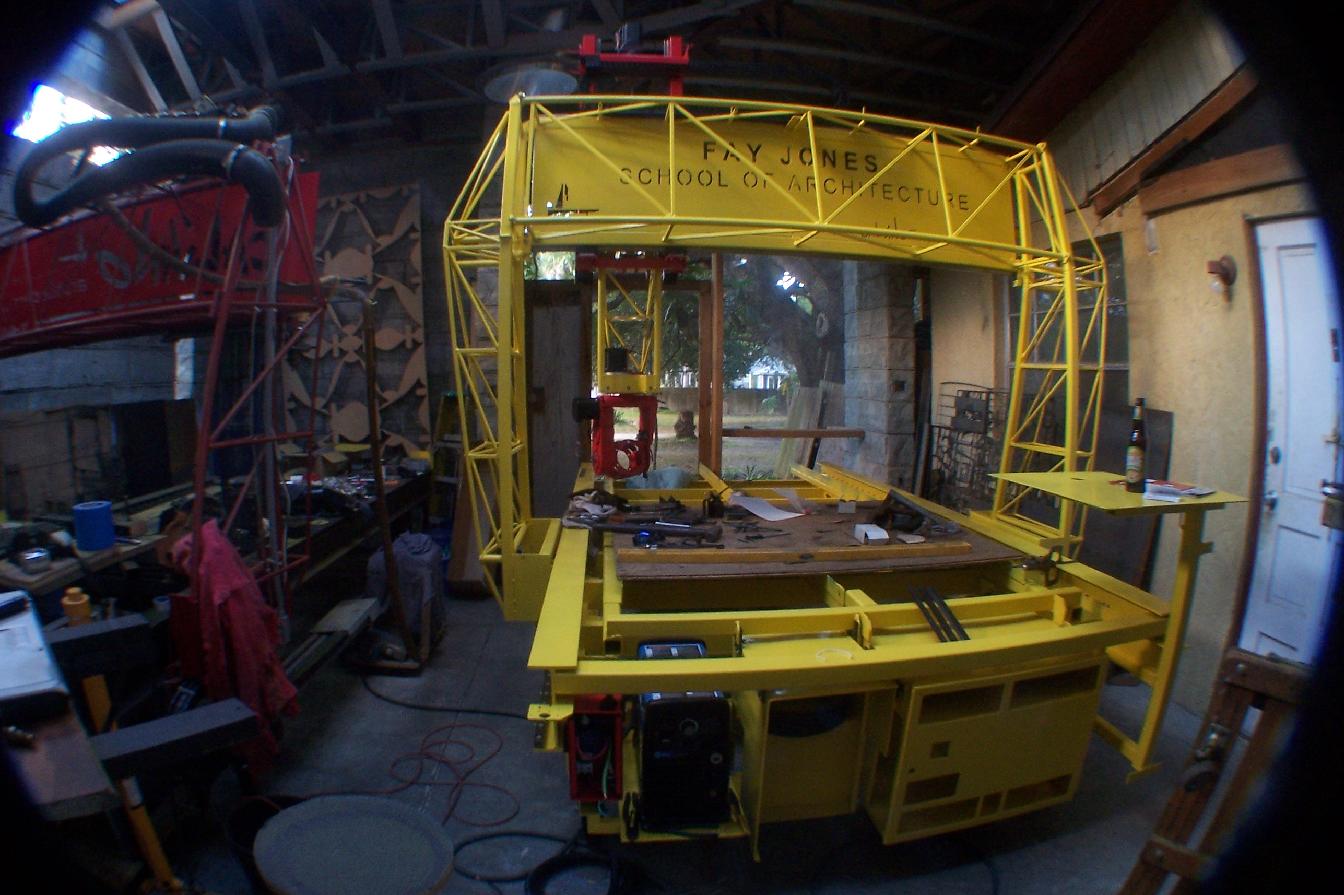

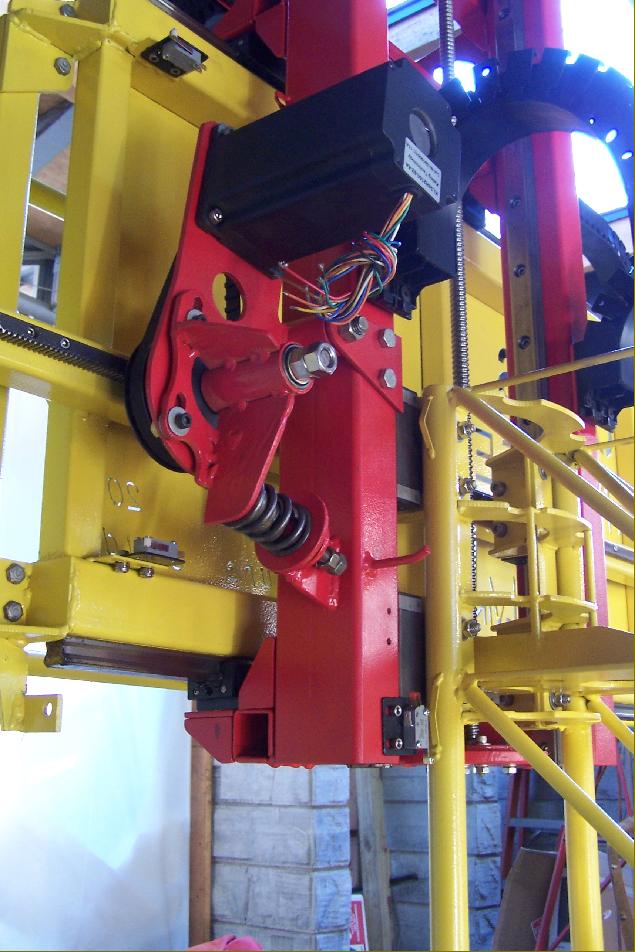

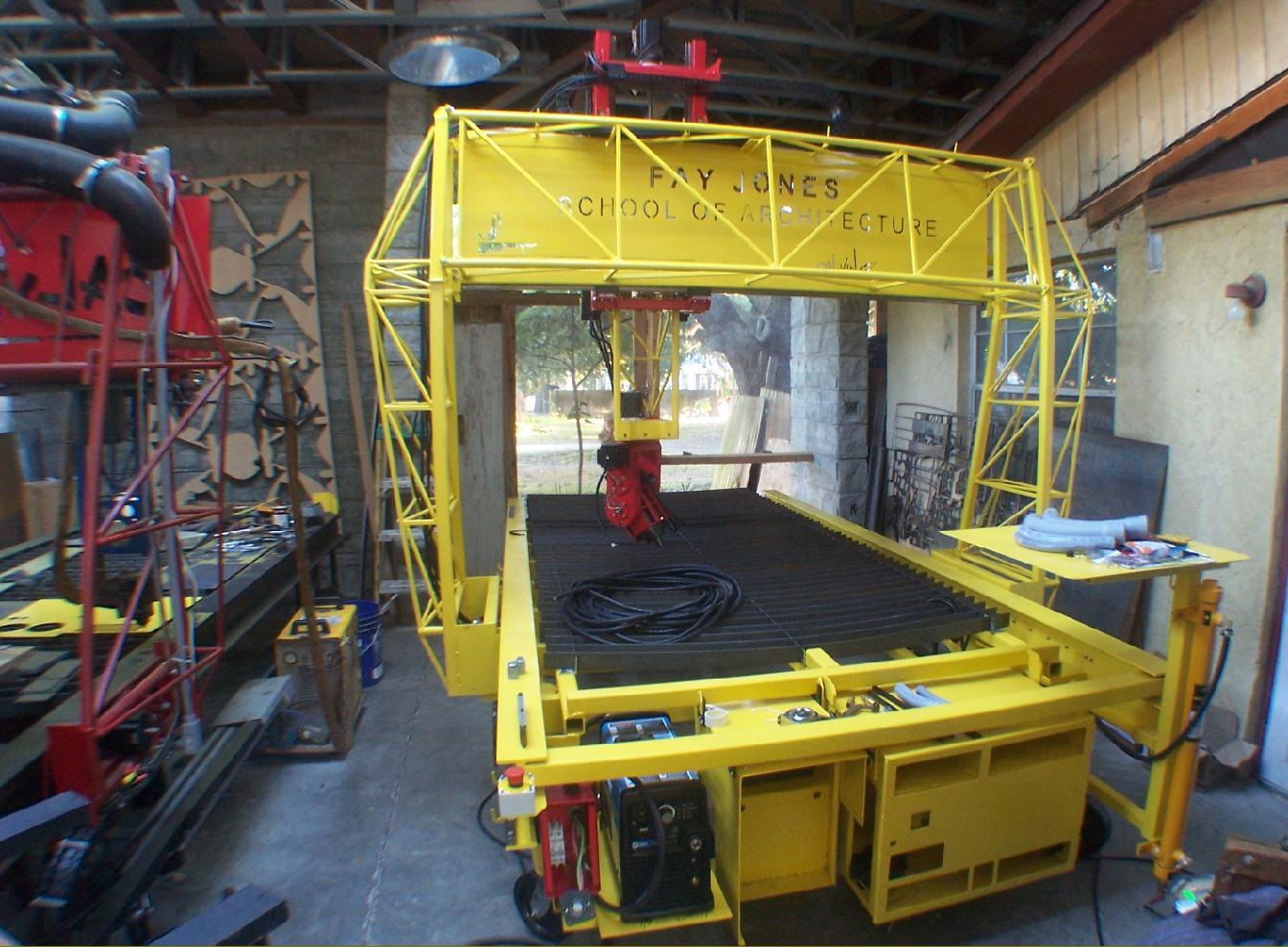

	Here we are well into the re-assembly . . .

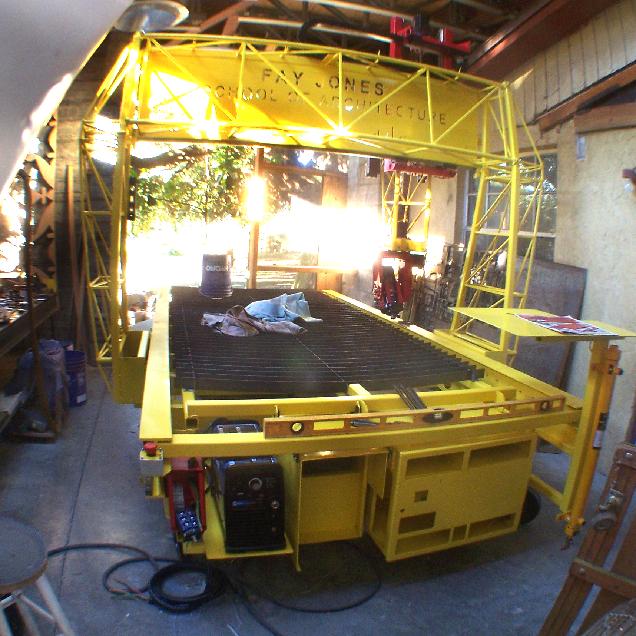

	. . . & now we're ready to wire everything up.

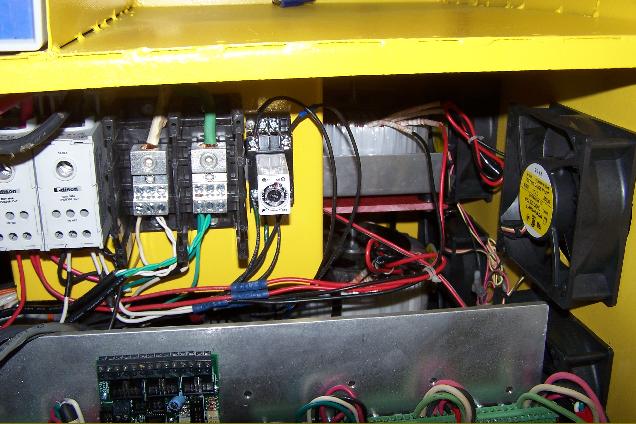

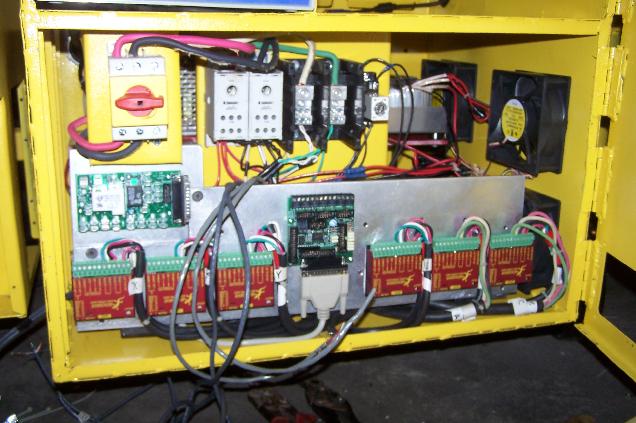

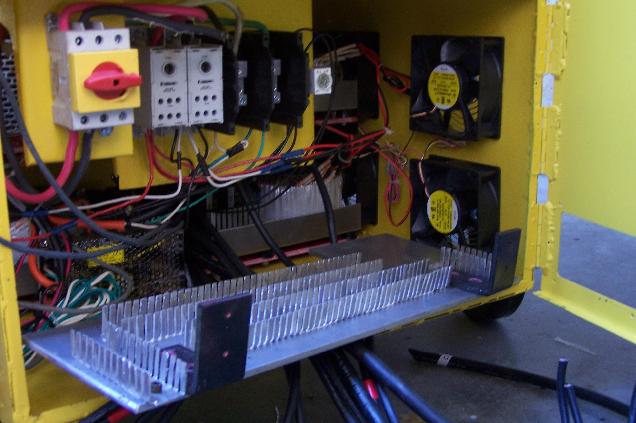

	The control cabinet wiring starting. The large heat sink on the bottom is made of 0.06" aluminum sheet & bolted to a 1/4" aluminum plate. This will hold the motor drivers which need to dissipate as much heat as possible. The large switch is the main power switch and has two on positions, one for plasma, one for router.
